Re: printing on the Simpl. Chinese and other non-latin1 locales

[Cyrille Chepelov <cyrille chepelov org>]

Le Tue, May 28, 2002, à 10:54:00PM +0800, Zhang Lin-bo a écrit:


> On Tue, 28 May 2002, Cyrille Chepelov wrote:
>
> Bonjour,
>
> > Le Tue, May 28, 2002, 3:49:50PM +0800, Zhang Lin-bo a rit:
> >
> > OK. I'll try your patch, hopefully today, to check whether it breaks or
> > not
> > on a latin0 workload.
>
> Thank you.

Done. It breaks (see latin0-*).

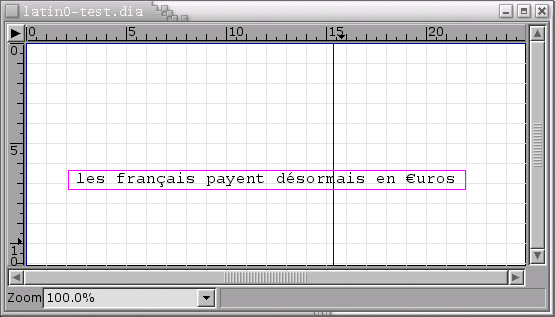

I've made a small dia file with a latin0 text in French (it features both
diacritics which were available in latin1, and the euro symbol which
triggered the transition from l1 to l0).

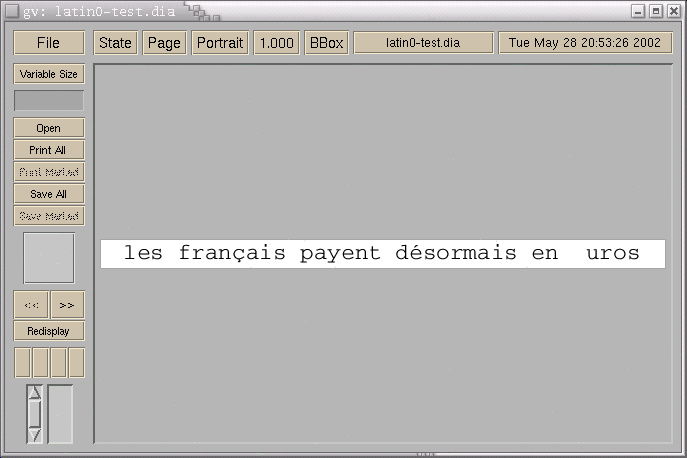

You can see that GhostScript botches the euro sign; in fact, it's because I
have an old font file which has not been updated.

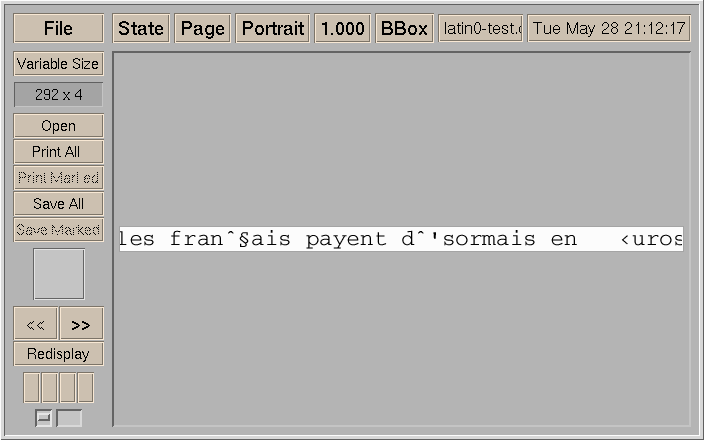

Now, if we look at the situation with your patch, we can see it just turns
the latin1 diacritics (and latin0, for that matter) into garbage. I think I
can bet that if you run the same .eps file on your machine, you will either
see the diacritics, spaces or squares, but not the same disaster. This, I
believe, is because RH ships a modified version of Ghostscript with UTF-8
capability (which I don't believe is a standard sanctioned by Adobe).

> > It would be interesting if you could send me a couple sample files
> > (privately). I'm not a Postscript wizard, and while I can read some
> > non-latin alphabets, I'm totally at loss with the CJK writing systems (big
> > surprise)
>
> I have attached some sample PS files in ps_samples.tar.bz2,
> They all contains two same Chinese character (ºº×Ö, or Han Zi,
> they mean "Chinese characters"). I don't know if the attachment
> is too large for the mailing list (131KB). If it can't get through,
> I'll send it to your address.

It went through in public, it seems. Results on my machine (not yet
Chinese-capable in that I haven't run ag*.sh. It does have some Chinese
font packages installed, though):

	abiword1.ps: shows "" (two double quote characters) in the upper
								left corner.
	abiword2.ps: same.

	They seem to use some encoding I'm not aware of (but which look on
	my latin screen the same as what you typed above). abiword1 includes
	some font resource, but the net result is identical.

	gnumeric.ps: does show Han Zi (looks the same as the .png you've
		sent in the previous tarball) plus the (latin) page number.

	They seem to include their own encoding tables, a little bit like we
	do, but more aggressive on the total encoding space (we black out a
	couple positions). They are using /uni1234 notation.

	mozilla.ps: two squares in the upper left corner; lower right corner
		shows a square as the separator between 2002, 05 and 28.
		(other corners filled with boring ASCII text)

	They seem to go through various hoops and jumps to display Unicode
	content. They fail, eventually.

I noticed I've got a lot of CJK-related resources and CMaps in my
Ghostscript directory. I'll investigate.


> I don't know much. A set of fontnames is defined in the CIDFont directory,
> and the ag1.sh script can create more font names in the Font directory
> (both are subdirectories in /usr/share/ghostscripts/Resource), it seems
> that none of them works with Dia's EPS files.

This looks somewhat familiar to the system described in
http://www.aihara.co.jp/~taiji/tops/
(I didn't have the time to understand all the meat there, but I think there
are some gems to pick up)

Can you download the file "test-ag-h.ps" there, and comment on its
viewability on your system ? The solution there looks very appealing to me
(OK, I included the postscript in this message)

> I don't think so. I have tried with a document containing the single
> letter 'A' (whose unicode name is /A), and I got the same result as
> with Chinese characters.

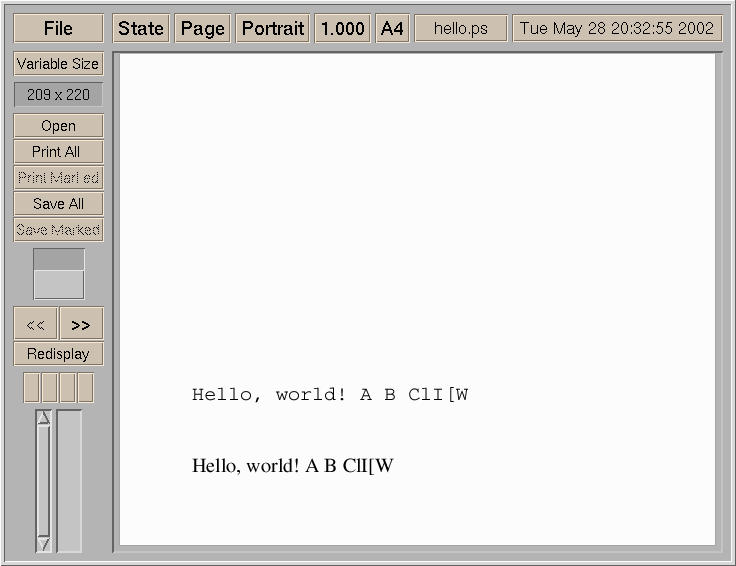

it seems the <1234 5678> notation would work. Can you try the zh_CN-hack1.eps,
zh_CN-hack2.eps, and hello.ps, and tell me what do you see on your machine ?

(a screenshot of hello.ps would be wonderful).

> >         zh_CN-custom-encoding  # what you call nonworking
> >         zh_CN-UTF8             # what you call working
>
> maybe also "zh_CN-GB-EUC", "zh_CN-Adobe-GB1", etc. I know nothing
> about these encodings, but they must represent some 'standard'.

Indeed they must do.

[snip on FreeType -- I'm not much of an expert here. Lars, Robert ?]

> Finally, a suggestion: I think dia should save the locale
> information with a diagram since interpretation of characters
> is locale dependent (I have a diagram which contains some Chinese
> characters, when I try to open it in a non zh_CN locale, I get
> a lot of warnings, such as "** WARNING **: unicode_iconv(u2l,
> utf=å? ...) failed, because 'Invalid or incomplete multibyte
> or wide character'...", and the diagram is incorrectly
> displayed).

This is unneccessary. We'll switch to Pango shortly. .dia files are UTF-8
XML.

	-- Cyrille

--
Grumpf.

test-ag-h.ps

hello.ps


latin0-test.dia

latin0-test.eps



latin0-test-zlb-patch.eps


zh_CN-hack1.eps

zh_CN-hack2.eps
